Lazily loading images is a popular option to optimize page speeds, especially on media-rich webpages. With typical image fields, adding lazy loading is quite simple, as you can simply add the attribute to your code block or field tag and call it a day.
However, with Rich Text fields, this becomes a bit more complicated, as we’re not dealing directly with an image, and the contents of the field are usually much more varied and could really include anything.
I needed to come up with a quick and easy-to-implement solution to add lazy loading into any images that were included in a rich text field.
The Approach
While there are many different approaches you can take to achieve this, I decided to simply overwrite the JavaScript utilized when editing a rich text field.
There exists a Javascript file in /sitecore/shell/Controls/Rich Text Editor/ called RichText Commands.js. This file contains functionality that adjusts certain aspects of markup written into the rich text field, such as adding language attributes to images, adjusting XML, add adding/removing paragraph tags. Since this script already deals with updating image attributes, I simply extended the functionality to also add in a new loading=”lazy” attribute/value.

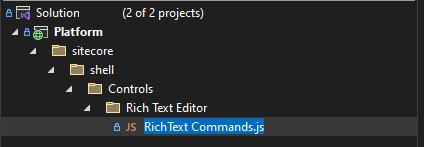

I simply copied the default version of this file, added it to my Platform project in Visual Studio (you can add this to whatever project controls any Sitecore customizations / publishes to your CM instance) with the same path mentioned above and added in the logic to add the new attribute. This logic was added to two spots, once in the “getHtml” function (aka the HTML view of the Rich Text Editor modal) and again in the “getDesign” function (the Design view of the Rich Text Editor modal).
The code itself is quite simple. Since there already exists sections that performs actions on “img” tags, I simply added the following to each:
if (!n.hasAttribute("loading")) {
n.setAttribute("loading", "lazy");
}
All this does is adds the loading=”lazy” attribute to any images that don’t already have it.
Some Considerations…
The full code is below. It’s important to note a few things. Since this is a default Sitecore file, there is the possibility that this changes in the future, and you may need to update your script to accommodate those changes. This file particular has not had any changes recently (I compared with some older versions of the platform), but it can happen so be aware!
Secondly, this is only one way to handle this problem. For example, you could handle adding this in code by parsing the rich text and adding in the attributes programmatically when rendering the field. I personally needed a quick and easy solution that was handled on the Sitecore side of things as this project is headless and the content may be used in other applications, but there are definitely other other approaches you can take depending on your needs!
Finally, if you have existing images in rich text, this approach won’t be enough. You will likely need to run either some Powershell script or other methodology to trigger updating these existing images in Rich Text fields. If you think you’d be interested in a blog post explaining how to do that, let me know!
If you have any questions, feel free to list them in the comments below.
The Code – RichText Commands.js
/* This file is shared between older developer center rich text editor and the new EditorPage, that is used exclusively
by Content Editor */
Telerik.Web.UI.Editor.CommandList["Save"] = function(commandName, editor, tool) {
var form = scGetForm();
if (form != null) {
form.postEvent("", "", "item:save");
}
};
var scEditor = null;
var scTool = null;
var scDatabase;
Telerik.Web.UI.Editor.CommandList["InsertSitecoreLink"] = function (commandName, editor, args) {
var d = Telerik.Web.UI.Editor.CommandList._getLinkArgument(editor);
Telerik.Web.UI.Editor.CommandList._getDialogArguments(d, "A", editor, "DocumentManager");
var html = editor.getSelectionHtml();
var id;
// internal link in form of <a href="~/link.aspx?_id=110D559FDEA542EA9C1C8A5DF7E70EF9">...</a>
if (html) {
id = GetIDByMediaPrefix(/link.aspx\?_id=([\w\d]+)/, html);
}
// link to media in form of <a href="-/media/CC2393E7CA004EADB4A155BE4761086B.ashx">...</a>
if (!id) {
id = GetMediaID(html);
}
if (!id) {
id = scItemID;
}
id = scFormatId(id);
scEditor = editor;
editor.showExternalDialog(
"/sitecore/shell/default.aspx?xmlcontrol=RichText.InsertLink&la=" + scLanguage + "&fo=" + id + (scDatabase ? "&databasename=" + scDatabase : ""),
null, //argument
1100,
700,
scInsertSitecoreLink, //callback
null, // callback args
"Insert Link",
true, //modal
Telerik.Web.UI.WindowBehaviors.Close, // behaviors
false, //showStatusBar
false //showTitleBar
);
};
function scFormatId(id){
if (decodeURIComponent(id) === id){
return encodeURI(id);
}
return id;
}
Telerik.Web.UI.Editor.CommandList["SetImageProperties"] = function (commandName, editor, args) {
var currentImage = editor.getSelectedElement();
if (currentImage.getAttribute("_languageInserted")) {
// following line is commented due to bug# 410521
//currentImage = currentImage.cloneNode();
var src = scGetImageSource(currentImage.outerHTML);
src = scReplaceAmps(src);
currentImage.setAttribute("src", src);
}
var callbackFunction = window.Telerik.Web.UI.Editor.CommandList.getCallbackFunction(args, function (sender, arg) {
var oldImage = editor.getSelectedElement();
if (oldImage && oldImage.parentNode) {
var newImage = arg.get_value ? arg.get_value() : arg.Result;
var source = scGetImageSource(newImage.outerHTML);
if (source) {
source = scReplaceAmps(source);
var newSrc = scAddLanguageToImageSource(source, window.scLanguage);
if (newSrc == source) {
if (newImage.getAttribute("_languageInserted")) {
//newImage.removeAttribute("_languageInserted");
}
} else {
newImage.setAttribute("_languageInserted", true);
newImage.setAttribute("src", newSrc);
}
}
}
oldImage.parentNode.replaceChild(newImage, oldImage);
});
var argument = new Telerik.Web.UI.EditorCommandEventArgs("SetImageProperties", null, currentImage);
Telerik.Web.UI.Editor.CommandList._getDialogArguments(argument, "IMG", editor, commandName);
editor.showDialog("ImageProperties", argument, callbackFunction);
};
Telerik.Web.UI.Editor.CommandList["ImageMapDialog"] = function (commandName, editor, args) {
var argument = window.Telerik.Web.UI.Editor.CommandList._getImageMapDialogArgument(editor);
var currentImage = editor.getSelectedElement();
if (currentImage.getAttribute("_languageInserted")) {
argument.ImageSrc = scReplaceAmps(argument.ImageSrc);
// following line is commented due to bug#427585
//argument.ImageSrc = scRemoveLanguageFromImageSource(argument.ImageSrc, window.scLanguage);
}
var callbackFunction = window.Telerik.Web.UI.Editor.CommandList.getCallbackFunction(args, function (sender, arg) {
if (editor.getSelectedElement().getAttribute("_languageInserted")) {
if (arg.ImageSrc) {
arg.ImageSrc = scReplaceAmps(arg.ImageSrc);
// following line is commented due to bug#427585
//arg.ImageSrc = scAddLanguageToImageSource(arg.ImageSrc, window.scLanguage);
}
}
window.Telerik.Web.UI.Editor.CommandList._setImageMapProperties(editor, arg, commandName);
return false;
});
editor.showDialog("ImageMapDialog", argument, callbackFunction);
return false;
};
function scInsertSitecoreLink(sender, returnValue) {
if (!returnValue) {
return;
}
var d = scEditor.getSelection().getParentElement();
if ($telerik.isFirefox && d.tagName == "A") {
d.parentNode.removeChild(d);
} else {
scEditor.fire("Unlink");
}
var text = scEditor.getSelectionHtml();
if ($telerik.isIE) {
text = scIEFixRTETextRange(scEditor);
}
if (text == "" || text == null || ((text != null) && (text.length == 15) && (text.substring(2, 15).toLowerCase() == "<p> </p>"))) {
text = returnValue.text;
}
else {
// if selected string is a full paragraph, we want to insert the link inside the paragraph, and not the other way around.
var regex = /^[\s]*<p>(.+)<\/p>[\s]*$/i;
var match = regex.exec(text);
if (match && match.length >= 2) {
scEditor.pasteHtml("<p><a href=\"" + returnValue.url + "\">" + match[1] + "</a></p>", "DocumentManager");
return;
}
}
scEditor.pasteHtml("<a href=\"" + returnValue.url + "\">" + text + "</a>", "DocumentManager");
}
Telerik.Web.UI.Editor.CommandList["InsertSitecoreMedia"] = function(commandName, editor, args) {
var html = editor.getSelectionHtml();
var id;
// inserted media in form of <img src="-/media/CC2393E7CA004EADB4A155BE4761086B.ashx" />
if (!id) {
id = GetMediaID(html);
}
scEditor = editor;
editor.showExternalDialog(
"/sitecore/shell/default.aspx?xmlcontrol=RichText.InsertImage&la=" + scLanguage + (id ? "&fo=" + id : "") + (scDatabase ? "&databasename=" + scDatabase : "") ,
null, //argument
1105,
700,
scInsertSitecoreMedia,
null,
"Insert Media",
true, //modal
Telerik.Web.UI.WindowBehaviors.Close, // behaviors
false, //showStatusBar
false //showTitleBar
);
};
GetMediaID = function(html)
{
var id = null;
var list = prefixes.split('|');
if(!list)
{
id = GetIDByMediaPrefix('~\\/media\\/([\\w\\d]+)\\.ashx', html);
}
else
{
for(i = 0; i < list.length; i++)
{
if(list[i] != '')
{
id = GetIDByMediaPrefix(list[i] +'([\\w\\d]+)\\.ashx', html);
if(id)
{
break;
}
}
}
}
return id;
}
GetIDByMediaPrefix = function(pattern, html)
{
var regex = new RegExp(pattern, 'm');
var match = regex.exec(html);
if (match && match.length >=1 && match[1]) {
return match[1];
}
return null;
}
function scInsertSitecoreMedia(sender, returnValue) {
if (returnValue) {
scEditor.pasteHtml(returnValue.media);
}
}
function PrototypeAwayFilter() {
PrototypeAwayFilter.initializeBase(this);
this.set_isDom(true);
this.set_enabled(true);
this.set_name("Sitecore PrototypeAwayFilter filter");
this.set_description("Sitecore PrototypeAwayFilter filter removes prototype attributes from DOM");
}
PrototypeAwayFilter.prototype =
{
getHtmlContent: function (content) {
this.getHtml(content);
return content;
},
getHtml: function (node) {
var children = node.childNodes;
for (var i = children.length - 1; i >= 0; i--) {
var n = children[i];
if (n.nodeType != 1) {
continue;
}
if (n.removeAttribute) {
n._extendedByPrototype = null;
n.removeAttribute("_extendedByPrototype");
}
this.getHtml(n);
}
}
}
WebControlFilter = function() {
WebControlFilter.initializeBase(this);
this.set_isDom(true);
this.set_enabled(true);
this.set_name("Sitecore WebControl filter");
this.set_description("Sitecore WebControl filter displays ASP.NET web controls");
}
WebControlFilter.prototype =
{
getHtmlContent: function(content) {
this.getHtml(content);
return content;
},
getHtml: function(node) {
var children = node.childNodes;
for (var i = children.length - 1; i >= 0; i--) {
//Do not use here Prototype. This will cause issues like 329238, when Flash object getting extended by
//prototype methods.
var n = children[i];
if (n.nodeType != 1) {
continue;
}
if (n.tagName != "IMG" || n.className != "scWebControl") {
this.getHtml(n);
continue;
}
Element.replace(n, n.title);
}
},
getDesignContent: function(content) {
this.getDesign(content);
return content;
},
getDesign: function(node) {
var children = node.childNodes;
for (var i = children.length - 1; i >= 0; i--) {
var n = children[i];
if (n.nodeType != 1) {
continue;
}
var prefix = n.scopeName != null ? n.scopeName : n.prefix;
if (prefix == null || prefix == "" || prefix == "HTML") {
this.getDesign(n);
continue;
}
var webcontrol = n.outerHTML;
var j = webcontrol.indexOf("<?xml:namespace");
if (j >= 0) {
var k = webcontrol.substr(j).indexOf(">") + j + 1;
webcontrol = webcontrol.substr(k);
}
var e = new Element("img", { 'width': 32, 'height': 32, 'class': 'scWebControl', 'title': webcontrol, 'style': 'background:#F8EED0;margin:4px;border:1px solid #F0CCA5', 'src': '/sitecore/shell/-/icon/Software/32x32/Elements1.png' });
Element.replace(n, e);
}
}
}
function ImageSourceFilter() {
ImageSourceFilter.initializeBase(this);
this.set_isDom(true);
this.set_enabled(true);
this.set_name("Sitecore ImageSourceFilter filter");
this.set_description("Sitecore ImageSourceFilter filter adds la querystring parameter to image sources");
}
ImageSourceFilter.prototype =
{
getHtmlContent: function (content) {
this.getHtml(content);
return content;
},
getHtml: function (node) {
var children = node.childNodes;
for (var i = children.length - 1; i >= 0; i--) {
var n = children[i];
if (n.nodeType != 1) {
continue;
}
if (n.tagName.toLowerCase() == "img") {
var src = scGetImageSource(n.outerHTML);
if (src && n.getAttribute("_languageInserted")) {
src = scReplaceAmps(src);
n.setAttribute("src", scRemoveLanguageFromImageSource(src, window.scLanguage));
n.removeAttribute("_languageInserted");
}
if (!n.hasAttribute("loading")) {
n.setAttribute("loading", "lazy");
}
}
else this.getHtml(n);
}
},
getDesignContent: function (content) {
this.getDesign(content);
return content;
},
getDesign: function (node) {
var children = node.childNodes;
for (var i = children.length - 1; i >= 0; i--) {
var n = children[i];
if (n.nodeType != 1) {
continue;
}
if (n.tagName.toLowerCase() == "img") {
var src = scGetImageSource(n.outerHTML);
if (src) {
src = scReplaceAmps(src);
var newSrc = scAddLanguageToImageSource(src, window.scLanguage);
if (newSrc != src) {
n.setAttribute("src", newSrc);
n.setAttribute("_languageInserted", true);
}
if (!n.hasAttribute("loading")) {
n.setAttribute("loading", "lazy");
}
}
}
else this.getDesign(n);
}
}
}
WebControlFilter.registerClass('WebControlFilter', Telerik.Web.UI.Editor.Filter);
PrototypeAwayFilter.registerClass('PrototypeAwayFilter', Telerik.Web.UI.Editor.Filter);
ImageSourceFilter.registerClass('ImageSourceFilter', Telerik.Web.UI.Editor.Filter);
function scGetImageSource(text) {
var sourceStart = text.indexOf("src=\"");
var sourceEnd;
var source = '';
if (sourceStart > -1) {
sourceStart += "src=\"".length;
sourceEnd = text.indexOf("\"", sourceStart);
if (sourceEnd > -1) {
source = text.substr(sourceStart, sourceEnd - sourceStart);
}
}
return source.trim();
}
function scAddLanguageToImageSource(src, language) {
if (src) {
var prefs = window.prefixes.split("|");
if (!prefs) {
prefs = new Array();
prefs[0] = "-/media/";
}
for (var j = 0; j < prefs.length; ++j) {
if (prefs[j] == "") continue;
var regex = new RegExp(prefs[j] + '([\\w\\d]{32})\\.ashx', "m");
var match = regex.exec(src);
if (match) {
var qs = src.indexOf('?');
if (qs > -1) {
var lang = src.indexOf('la=');
if (lang == -1) {
src = src.substr(0, qs + 1) + "la=" + language + "&" + src.substr(qs + 1);
return src;
}
}
else {
src = src + "?la=" + language;
return src;
}
break;
}
}
}
return src;
}
function scRemoveLanguageFromImageSource(src, language) {
var regex = new RegExp("la=" + language + "&?");
src = src.replace(regex, "").replace(/\?$/, "");
return src;
}
function scReplaceAmps(text) {
var ind;
while((ind=text.indexOf("&"))>-1) {
text = text.substring(0, ind + 1) + text.substring(ind + "&".length);
}
return text;
}
function scIEFixRTETextRange(scEditor) {
var text = scEditor.getSelectionHtml();
var regex = /^([\s]*<p.*?>).+(<\/p>[\s]*)$/i;
var match = regex.exec(text);
if (match && match.length == 3) {
var elem = scEditor.getSelectedElement();
if (elem.parentElement.lastChild != elem) {
var range = scEditor.getSelection().getRange();
range.moveEnd('character', -1);
scEditor.getSelection().selectRange(range);
text = scEditor.getSelectionHtml();
}
}
return text;
}
Patt's Sitecore Blog
Leave a comment
